Náradie na demontáž skrutky hlavy valca, pre Ford 2.0 l EcoBlue, ako 303-1611-03/1, STAHLMAXX 124771

Kompletné špecifikácie

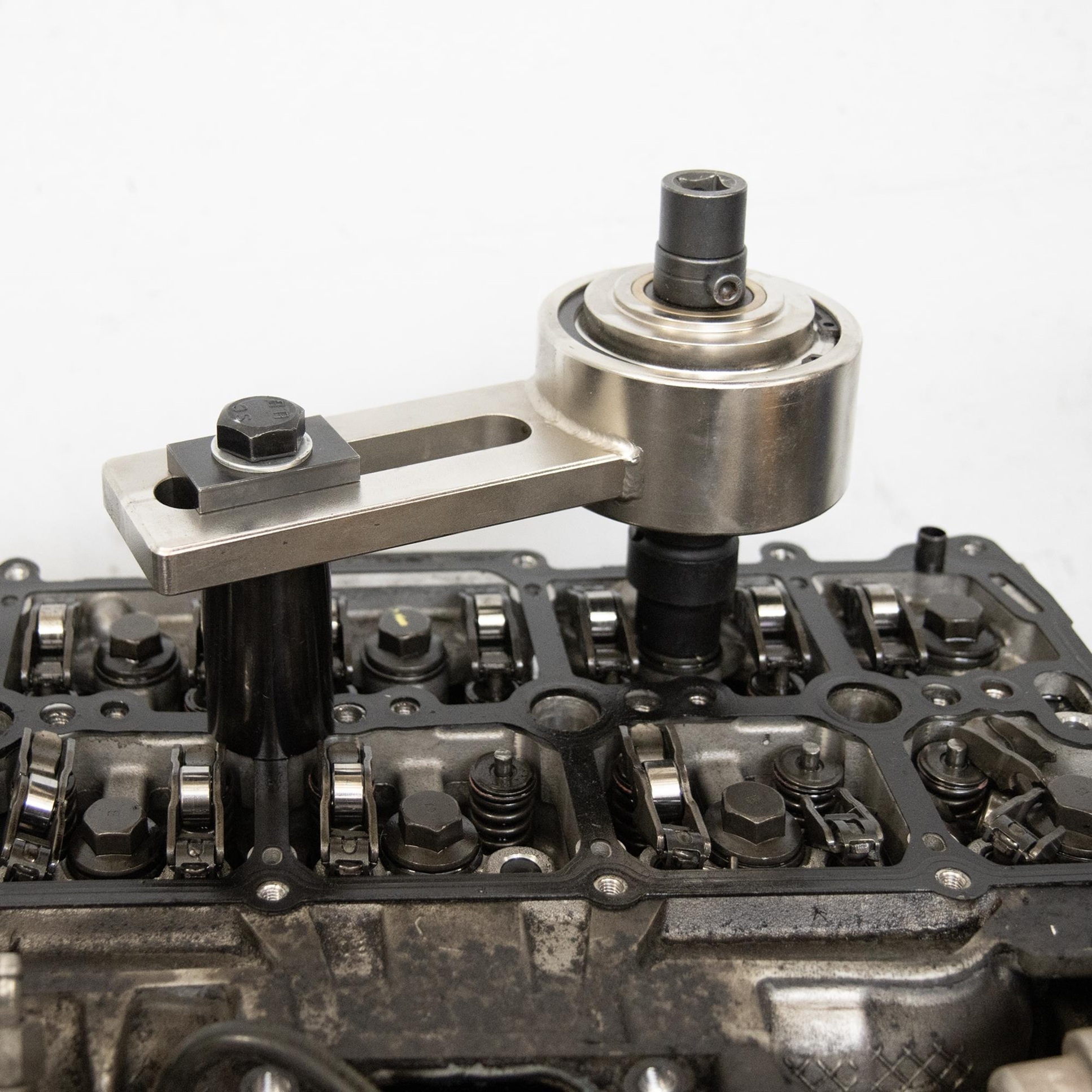

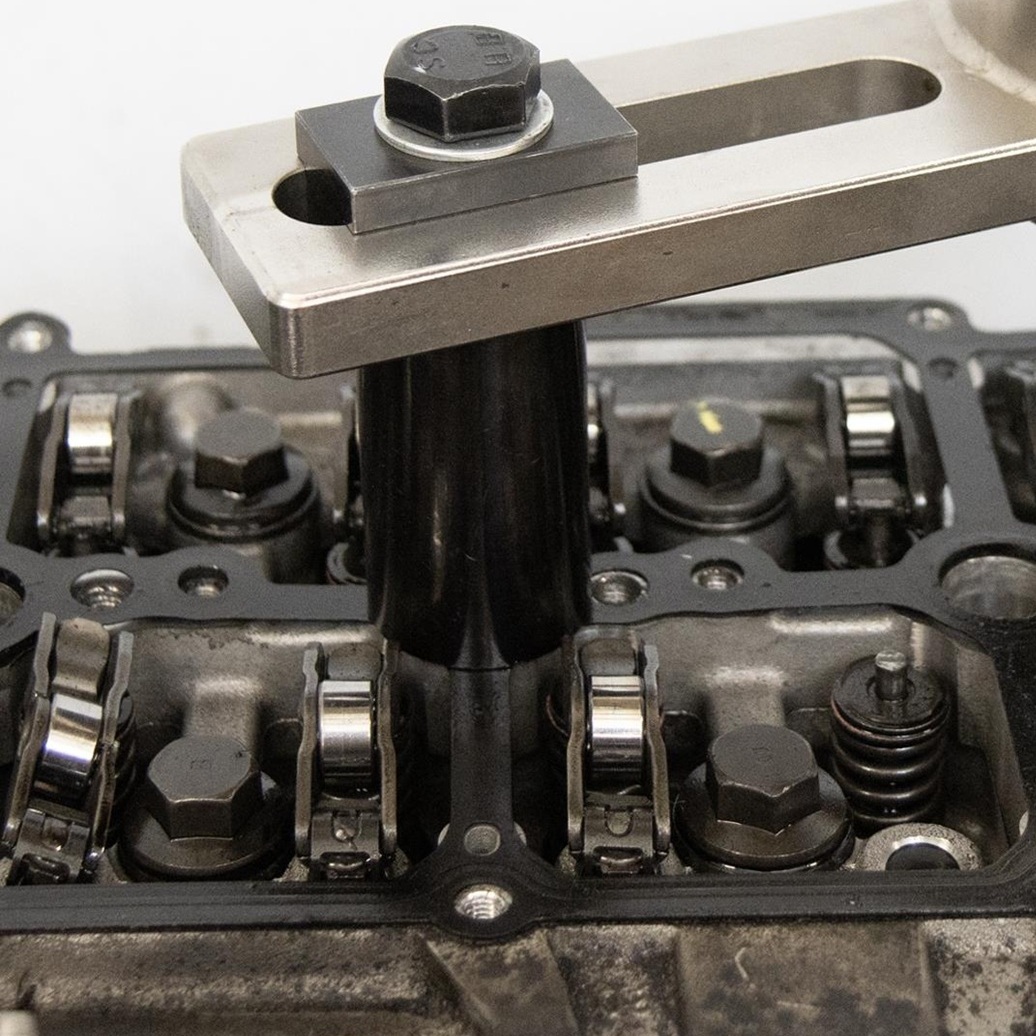

• This special tool is inserted into the injector bore of the Ford 2.0 EcoBlue engine and, in conjunction with a torque multiplier (e.g., part no. 121148, like 303-1611), is used for the proper tightening and loosening of the cylinder head bolts.

• The Stahlmaxx special tool is based on the original tool but has been further developed by us. It performs all functions, is more compact, more cost-effective, and allows for significantly faster work, as the need for constant bolt changes is eliminated.

• NOTE: A torque multiplier (see additional tool) is required for use.
• Suitable for the following engines and engine codes: 2.0L EcoBlue BC2X, BCCA, BCCB, BCCC, BCCD, BCDA, BCFA, BCFB, BCFC, BCFD, BCRA, BJFA, BJFB, BJFC, BJFD, BJRA, BJRB, BKFA, BKFB, BKFC, BKFD, BKRA, BKRB, BLFA, BLFB, BLFC, BLFD, BLHA, BLRA, BLRB, Y2LX, YLCA, YLCB, YLCC, YLDA, YLF6, YLFA, YLFB, YLFS, YLR6, YLRA, YMCA, YMCB, YMCC, YMF6, YMFA, YMFB, YMFS, YMHA, YMR6, YMRA, YNCA, YNF6, YNFA, YNFB, YNFS, YNR6, YNRA, YNSX
  • BC2X, BCCC, BCCD, BCDA, BCFA, BCFA(DZJE), BCFADZJE, BCFB, BCFC, BCFD, BCRA, BJFA, BJFA(ENBJ), BJFAENBJ, BJFB, BJFC, BJFD, BJRA, BKFA, BKFA(DZJA), BKFADZJA, BKFB, BKFB(ENBK), BKFBENBK, BKFC, BKFD, BKRA, BKRB, BLFA, BLFB, BLFC, BLFD, BLHA, BLRA, BLRB, DZJA(BKFA), DZJABKFA, DZJF(BJFA), DZJFBJFA, ENBC, ENBJ, ENBK, T20DD0J, YLCB, YLCC, YLDA, YLF6, YLFA, YLFB, YLFS, YLR6, YLRA, YMCB, YMCC, YMF6, YMFA, YMFB, YMFS, YMHA, YMR6, YMRA, YNCA, YNF6, YNFA, YNFB, YNFS, YNR6, YNRA
• suitable for
  • FORD FOCUS IV (HN) (01.2018 - ) 2.0 EcoBlue (150 HP, 110 kW)
    FORD FOCUS IV (HN) (01.2018 - ) 2.0 ST EcoBlue (190 HP, 140 kW)
    FORD FOCUS IV Tournament (HP) (09.2018 - ) 2.0 EcoBlue (150 HP, 110 kW)
    FORD FOCUS IV Tournament (HP) (09.2018 - ) 2.0 ST EcoBlue (190 HP, 140 kW)
    FORD GALAXY (CK) (01.2015 - 06.2018) 2.0 EcoBlue (120 HP, 88 kW)
    FORD GALAXY (CK) (01.2015 - 06.2018) 2.0 EcoBlue (150 HP, 110 kW)
    FORD GALAXY (CK) (01.2015 - 06.2018) 2.0 EcoBlue (190 HP, 140 kW)
    FORD GALAXY (CK) (01.2015 - 06.2018) 2.0 EcoBlue 4x4 (150 HP, 110 kW)
    FORD GALAXY (CK) (01.2015 - 06.2018) 2.0 EcoBlue 4x4 (190 HP, 140 kW)
    FORD GALAXY (CK) (01.2015 - 06.2018) 2.0 EcoBlue Bi-Turbo (240 HP, 176 kW)
    FORD GALAXY MK III VAN (CK) (03.2019 - ) 2.0 EcoBlue (150 HP, 110 kW)
    FORD GALAXY MK III VAN (CK) (03.2019 - ) 2.0 EcoBlue AWD (190 HP, 140 kW)
    FORD MONDEO V Hatchback (CE) (09.2014 - ) 2.0 EcoBlue (120 HP, 88 kW)
    FORD MONDEO V Hatchback (CE) (09.2014 - ) 2.0 EcoBlue (150 HP, 110 kW)
    FORD MONDEO V Hatchback (CE) (09.2014 - ) 2.0 EcoBlue (190 HP, 140 kW)
    FORD MONDEO V Hatchback (CE) (09.2014 - ) 2.0 EcoBlue 4x4 (190 HP, 140 kW)
    FORD MONDEO V Saloon (CD) (09.2012 - 07.2016) 2.0 EcoBlue (120 HP, 88 kW)
    FORD MONDEO V Saloon (CD) (09.2012 - 07.2016) 2.0 EcoBlue (150 HP, 110 kW)
    FORD MONDEO V Saloon (CD) (09.2012 - 07.2016) 2.0 EcoBlue (190 HP, 140 kW)
    FORD MONDEO V Saloon (CD) (09.2012 - 07.2016) 2.0 EcoBlue 4x4 (190 HP, 140 kW)
    FORD MONDEO V Turnier (CF) (09.2014 - ) 2.0 EcoBlue (120 hp, 88 kW)
    FORD MONDEO V Turnier (CF) (09.2014 - ) 2.0 EcoBlue (150 hp, 110 kW)
    FORD MONDEO V Turnier (CF) (09.2014 - ) 2.0 EcoBlue (190 hp, 140 kW)
    FORD MONDEO V Tournament (CF) (09.2014 - ) 2.0 EcoBlue 4x4 (190 HP, 140 kW)
    FORD RANGER (TKE) (04.2011 - ) 2.0 EcoBlue 4x4 (170 HP, 125 kW)
    FORD S-MAX (CJ, WA6) (01.2015 - 06.2018) 2.0 EcoBlue (120 HP, 88 kW)
    FORD S-MAX (CJ, WA6) (01.2015 - 06.2018) 2.0 EcoBlue (150 HP, 110 kW)
    FORD S-MAX (CJ, WA6) (01.2015 - 06.2018) 2.0 EcoBlue (190 HP, 140 kW)
    FORD S-MAX (CJ, WA6) (01.2015 - 06.2018) 2.0 EcoBlue 4x4 (150 HP, 110 kW)
    FORD S-MAX (CJ, WA6) (01.2015 - 06.2018) 2.0 EcoBlue 4x4 (190 HP, 140 kW)
    FORD S-MAX (CJ, WA6) (01.2015 - 06.2018) 2.0 EcoBlue BI-Turbo (240 HP, 176 kW)
    FORD TOURNEO CUSTOM V362 Bus (F3) (04.2012 - 12.2015) 2.0 EcoBlue (105 HP, 77 kW)
    FORD TOURNEO CUSTOM V362 Bus (F3) (04.2012 - 12.2015) 2.0 EcoBlue (130 HP, 96 kW)
    FORD TOURNEO CUSTOM V362 Bus (F3) (04.2012 - 12.2015) 2.0 EcoBlue (170 HP, 125 kW)
    FORD TOURNEO CUSTOM V362 Bus (F3) (04.2012 - 12.2015) 2.0 EcoBlue (185 HP, 136 kW)
    FORD TOURNEO CUSTOM V362 Bus (F3) (04.2012 - 12.2015) 2.0 EcoBlue mHEV (130 HP, 96 kW)
    FORD TOURNEO CUSTOM V362 Bus (F3) (04.2012 - 12.2015) 2.0 EcoBlue mHEV (185 HP, 136 kW)
    FORD TRANSIT CUSTOM V362 Bus (F3) (04.2012 - 12.2015) 2.0 EcoBlue (105 HP, 77 kW)
    FORD TRANSIT CUSTOM V362 Bus (F3) (04.2012 - 12.2015) 2.0 EcoBlue (130 HP, 96 kW)
    FORD TRANSIT CUSTOM V362 Bus (F3) (04.2012 - 12.2015) 2.0 EcoBlue (170 HP, 125 kW)
    FORD TRANSIT CUSTOM V362 Bus (F3) (04.2012 - 12.2015) 2.0 EcoBlue (185 HP, 136 kW)
    FORD TRANSIT CUSTOM V362 Bus (F3) (04.2012 - 12.2015) 2.0 EcoBlue mHEV (105 HP, 77 kW)
    FORD TRANSIT CUSTOM V362 Bus (F3) (04.2012 - 12.2015) 2.0 EcoBlue mHEV (130 HP, 96 kW)
    FORD TRANSIT CUSTOM V362 Bus (F3) (04.2012 - 12.2015) 2.0 EcoBlue mHEV (170 HP, 125 kW)
    FORD TRANSIT CUSTOM V362 Bus (F3) (04.2012 - 12.2015) 2.0 EcoBlue mHEV (185 HP, 136 kW)
    FORD TRANSIT CUSTOM V362 Box (FY, FZ) (04.2012 - 12.2015) 2.0 EcoBlue (105 HP, 77 kW)
    FORD TRANSIT CUSTOM V362 Box (FY, FZ) (04.2012 - 12.2015) 2.0 EcoBlue (130 HP, 96 kW)
    FORD TRANSIT CUSTOM V362 Box (FY, FZ) (04.2012 - 12.2015) 2.0 EcoBlue (170 HP, 125 kW)
    FORD TRANSIT CUSTOM V362 Box (FY, FZ) (04.2012 - 12.2015) 2.0 EcoBlue (185 HP, 136 kW)
    FORD TRANSIT CUSTOM V362 Box (FY, FZ) (04.2012 - 12.2015) 2.0 EcoBlue mHEV (130 HP, 96 kW)
    FORD TRANSIT CUSTOM V362 Box (FY, FZ) (04.2012 - 12.2015) 2.0 EcoBlue mHEV (170 HP, 125 kW)
    FORD TRANSIT CUSTOM V362 Box (FY, FZ) (04.2012 - 12.2015) 2.0 EcoBlue mHEV (185 HP, 136 kW)
    FORD TRANSIT V363 Bus (FAD, FBD) (08.2013 - 11.2017) 2.0 EcoBlue (105 HP, 77 kW)
    FORD TRANSIT V363 Bus (FAD, FBD) (08.2013 - 11.2017) 2.0 EcoBlue (130 HP, 96 kW)
    FORD TRANSIT V363 Bus (FAD, FBD) (08.2013 - 11.2017) 2.0 EcoBlue (170 HP, 125 kW)
    FORD TRANSIT V363 Bus (FAD, FBD) (08.2013 - 11.2017) 2.0 EcoBlue RWD (130 HP, 96 kW)
    FORD TRANSIT V363 Bus (FAD, FBD) (08.2013 - 11.2017) 2.0 EcoBlue RWD (170 HP, 125 kW)
    FORD TRANSIT V363 Bus (FAD, FBD) (08.2013 - 11.2017) 2.0 EcoBlue mHEV (130 HP, 96 kW)
    FORD TRANSIT V363 Bus (FAD, FBD) (08.2013 - 11.2017) 2.0 EcoBlue mHEV (170 HP, 125 kW)
    FORD TRANSIT V363 Box (FCD, FDD) (08.2013 - 11.2017) 2.0 EcoBlue (105 HP, 77 kW)
    FORD TRANSIT V363 Box (FCD, FDD) (08.2013 - 11.2017) 2.0 EcoBlue (130 HP, 96 kW)
    FORD TRANSIT V363 Box (FCD, FDD) (08.2013 - 11.2017) 2.0 EcoBlue (170 HP, 125 kW)
    FORD TRANSIT V363 Box (FCD, FDD) (08.2013 - 11.2017) 2.0 EcoBlue (185 HP, 136 kW)
    FORD TRANSIT V363 Box (FCD, FDD) (08.2013 - 11.2017) 2.0 EcoBlue 4x4 (130 HP, 96 kW)
    FORD TRANSIT V363 Box (FCD, FDD) (08.2013 - 11.2017) 2.0 EcoBlue 4x4 (170 HP, 125 kW)
    FORD TRANSIT V363 Box (FCD, FDD) (08.2013 - 11.2017) 2.0 EcoBlue RWD (105 HP, 77 kW)
    FORD TRANSIT V363 Box (FCD, FDD) (08.2013 - 11.2017) 2.0 EcoBlue RWD (130 HP, 96 kW)
    FORD TRANSIT V363 Box (FCD, FDD) (08.2013 - 11.2017) 2.0 EcoBlue RWD (170 HP, 125 kW)
    FORD TRANSIT V363 Box (FCD, FDD) (08.2013 - 11.2017) 2.0 EcoBlue RWD (185 HP, 136 kW)
    FORD TRANSIT V363 Box (FCD, FDD) (08.2013 - 11.2017) 2.0 EcoBlue mHEV (130 HP, 96 kW)
    FORD TRANSIT V363 Box (FCD, FDD) (08.2013 - 11.2017) 2.0 EcoBlue mHEV (170 HP, 125 kW)
    FORD TRANSIT V363 Box (FCD, FDD) (08.2013 - 11.2017) 2.0 EcoBlue mHEV RWD (130 HP, 96 kW)
    FORD TRANSIT V363 Box (FCD, FDD) (08.2013 - 11.2017) 2.0 EcoBlue mHEV RWD (170 HP, 125 kW)
    FORD TRANSIT V363 Flatbed/Chassis (FED, FFD) (08.2013 - 11.2017) 2.0 EcoBlue (105 hp, 77 kW)
    FORD TRANSIT V363 Flatbed/Chassis (FED, FFD) (08.2013 - 11.2017) 2.0 EcoBlue (130 hp, 96 kW)
    FORD TRANSIT V363 Flatbed/Chassis (FED, FFD) (08.2013 - 11.2017) 2.0 EcoBlue (170 hp, 125 kW)
    FORD TRANSIT V363 Flatbed/Chassis (FED, FFD) (08.2013 - 11.2017) 2.0 EcoBlue (185 hp, 136 kW)
    FORD TRANSIT V363 Flatbed/Chassis (FED, FFD) (08.2013 - 11.2017) 2.0 EcoBlue 4x4 (130 hp, 96 kW)
    FORD TRANSIT V363 Flatbed/Chassis (FED, FFD) (08.2013 - 11.2017) 2.0 EcoBlue 4x4 (170 hp, 125 kW)
    FORD TRANSIT V363 Flatbed/Chassis (FED, FFD) (08.2013 - 11.2017) 2.0 EcoBlue RWD (105 hp, 77 kW)
    FORD TRANSIT V363 Flatbed/Chassis (FED, FFD) (08.2013 - 11.2017) 2.0 EcoBlue RWD (130 hp, 96 kW)
    FORD TRANSIT V363 Flatbed/Chassis (FED, FFD) (08.2013 - 11.2017) 2.0 EcoBlue RWD (170 hp, 125 kW)
    FORD TRANSIT V363 Flatbed/Chassis (FED, FFD) (08.2013 - 11.2017) 2.0 EcoBlue RWD (185 hp, 136 kW)
    FORD TRANSIT V363 Flatbed/Chassis (FED, FFD) (08.2013 - 11.2017) 2.0 EcoBlue mHEV (130 hp, 96 kW)
    FORD TRANSIT V363 Flatbed/Chassis (FED, FFD) (08.2013 - 11.2017) 2.0 EcoBlue mHEV (170 hp, 125 kW)
    FORD TRANSIT V363 Flatbed/Chassis (FED, FFD) (08.2013 - 11.2017) 2.0 EcoBlue mHEV RWD (130 hp, 96 kW)
    FORD TRANSIT V363 Flatbed/Chassis (FED, FFD) (08.2013 - 11.2017) 2.0 EcoBlue mHEV RWD (170 hp, 125 kW)
• et al. Installed on the following vehicles: C-MAX, EcoSport, Focus, Grand Tourneo Connect, Tourneo Connect, Transit, Connect, Courier.
• Example work steps (Ford Transit 2.0 EcoBlue):

  • 1. Stage 1: 15 Nm

  • 2. Stage 2: 25 Nm

  • 3. Stage 3: 40 Nm

  • 4. Stage 4: 90 degrees

  • 5. Stage 5: 90 degrees

  • 6. Stage 6: 90 degrees with torque multiplier, such as 303-1611 and adapter, such as 303-1611-03/1.

• Scope of delivery:

  • 1x holding tool for the torque multiplier

  • 1x socket 17 mm (3/4 inch)
• to be used as: 303-1611-03/1, 3031611031

• Recommended additional tool (not included):

  • Part no. 121148 Torque multiplier for Ford EcoBoost, ECOnetic, like 303-1611.

STAHLMAXX 124771
