Zátky tedniace, univerzálne, pre vedenia a vstrekovače, Ø 4 – 18 mm, M12 - M16, 78 dielov, STAHLMAXX 125099

Na stiahnutie

Návod / príručka

Kompletné špecifikácie

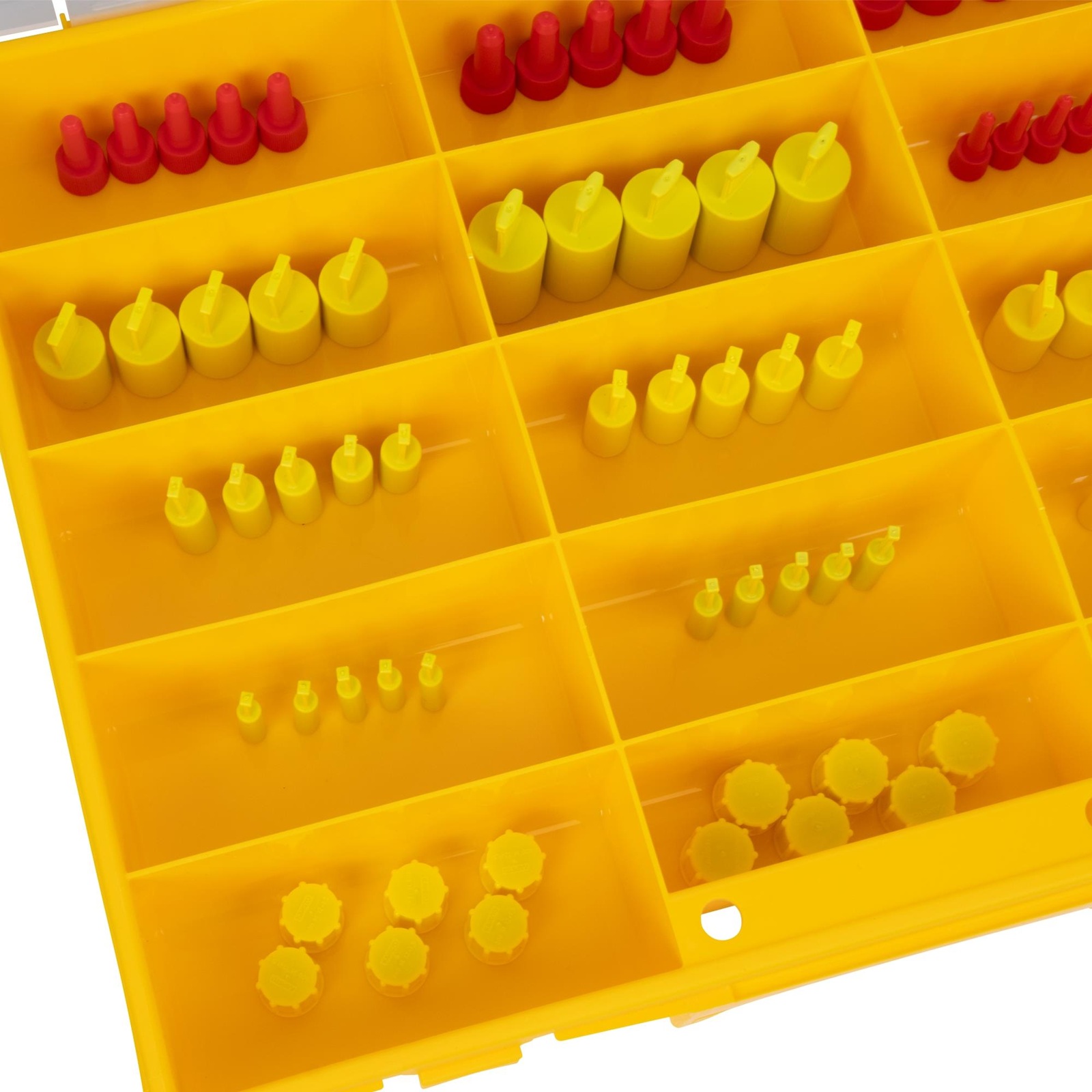

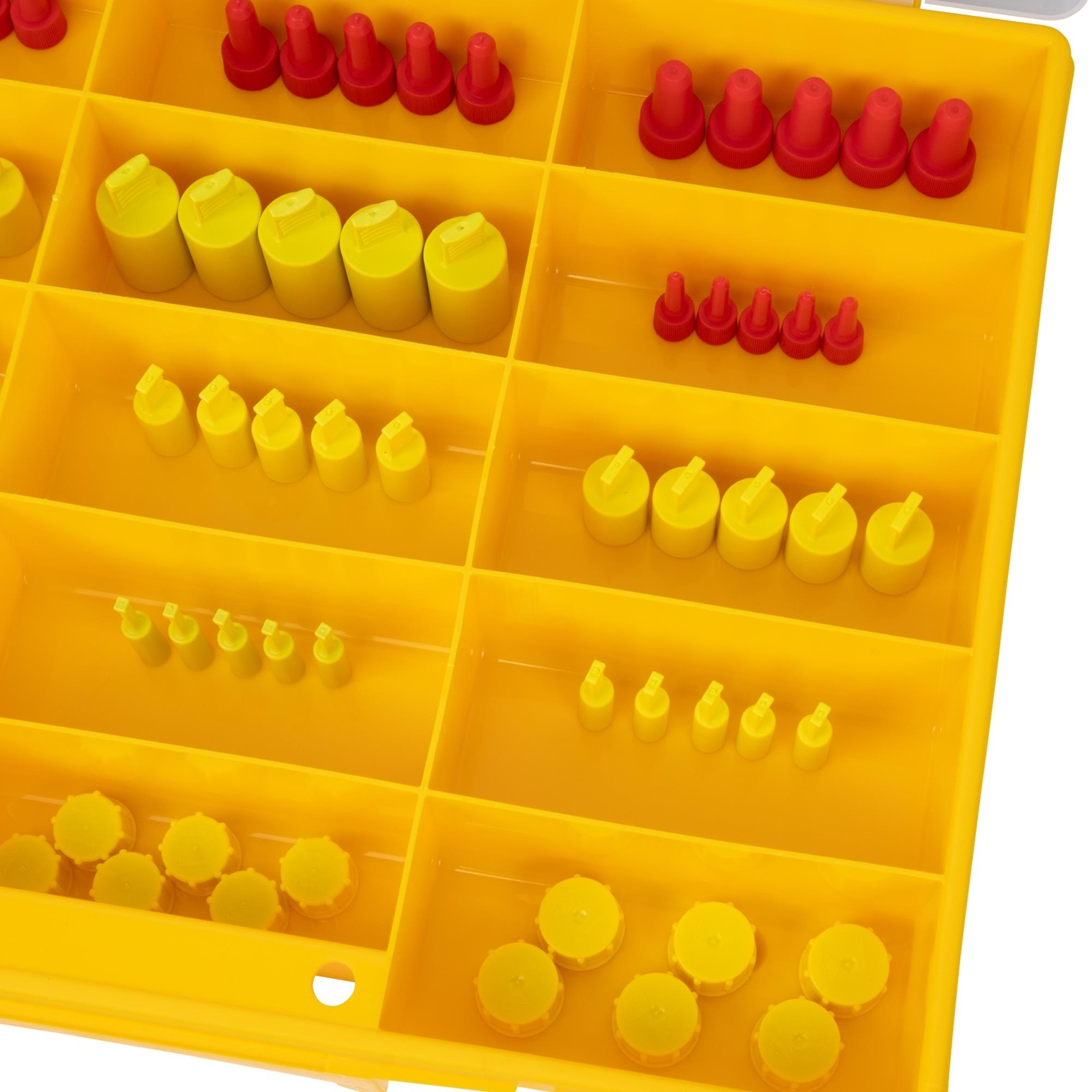

• This comprehensive assortment of sealing plugs is designed for the quick and clean sealing of open lines, connections, and injector joints – for example, during repairs, disassembly, cleaning, storage, or transport. This reliably keeps dirt, moisture, and foreign matter away from components and the system. The bright yellow or red color prevents them from being overlooked in the engine compartment. The set includes five external sealing caps in each of eight different diameters, ranging from 4 to 18 mm. These are suitable for sealing lines by simply slipping them on, are easy to slide on, provide a reliable seal, and can be easily removed.
• The set also includes five universally applicable conical sealing plugs in each of four sizes for insertion into bores, lines, or connections. Their conical shape allows for a tight fit when screwed or inserted into bores and internal threads.

• For connection threads, etc. For applications such as injection systems and injectors, the assortment also includes six of the proven threaded sealing caps with internal seals. Three sizes (M12, M14, and M16) cover virtually all common injector connection types.

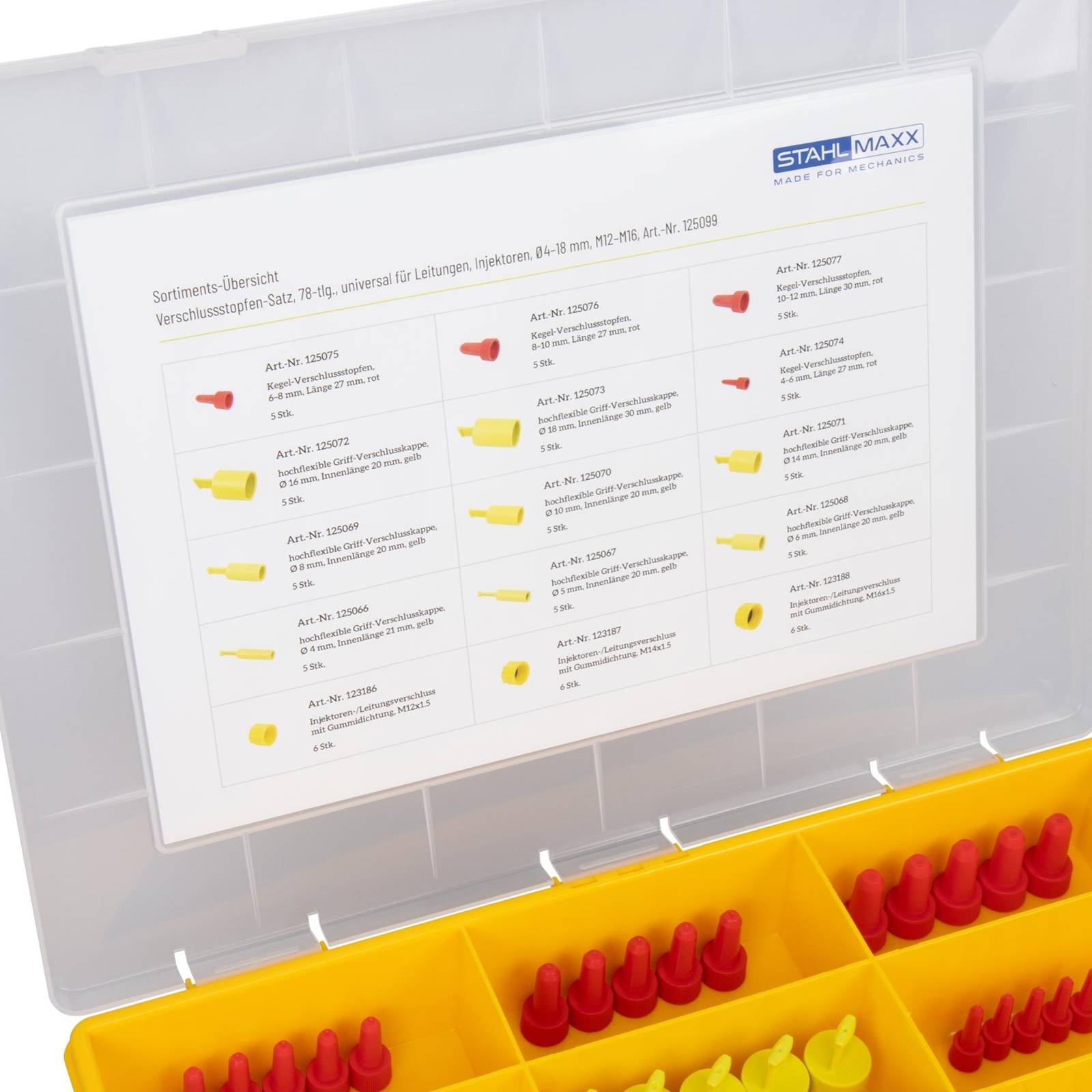

• The sealing elements are supplied sorted in a 15-compartment assortment box measuring 37 x 6 x 29.5 cm. A wipeable, durable insert with size information is included.
• Suitable for, among others, the following applications:

  • Fuel and vacuum lines
  • Hose ends, open pipelines
  • Transport/storage protection
• To be used as:

  • Mercedes: 129589009100

  • BMW: 24107604970

  • PSA, Citroen, Peugeot: 1701.HZ
• Overview:

  • ✔ For clean sealing of pipes, lines, injector bores, and internal and external threads

  • ✔ Comprehensive equipment

  • ✔ Professional work according to the repair guide

  • ✔ Individual sizes available

  • ✔ High-quality components
• Scope of delivery:

  • 5 x Part No. 125066 Highly flexible handle closure cap, Ø 4 mm, inner length 21 mm, yellow

  • 5 x Part No. 125067 Highly flexible handle closure cap, Ø 5 mm, inner length 20 mm, yellow

  • 5 x Part No. 125068 Highly flexible handle closure cap, Ø 6 mm, inner length 20 mm, yellow

  • 5 x Part No. 125069 Highly flexible handle end cap, Ø 8 mm, inner length 20 mm, yellow

  • 5 x Item no. 125070 Highly flexible handle end cap, Ø 10 mm,

  • inner length 20 mm, yellow 5 x Item no. 125071 Highly flexible handle end cap, Ø 14 mm, inner length
    20 mm, yellow 5 x Item no. 125072 Highly flexible handle end cap, Ø 16 mm, inner length 20 mm,
    yellow 5 x Item no. 125073 Highly flexible handle end cap, Ø 18 mm, inner length 30 mm, yellow
  • 5 x Item no. 125074 Conical end plug, 4–6 mm, length 27 mm, red

  • 5 x Item no. 125075 Conical sealing plug, 6–8 mm, length 27 mm, red

  • 5 x Item no. 125076 Conical sealing plug, 8–10 mm, length 27 mm, red

  • 5 x Item no. 125077 Conical sealing plug, 10–12 mm, length 30 mm, red

  • 6 x Item no. 123186 Injector/line plug with rubber seal, M12x1.5

  • 6 x Item no. 123187 Injector/line plug with rubber seal, M14x1.5

  • 6 x Item no. 123188 Injector/line plug with rubber seal, M16x1.5

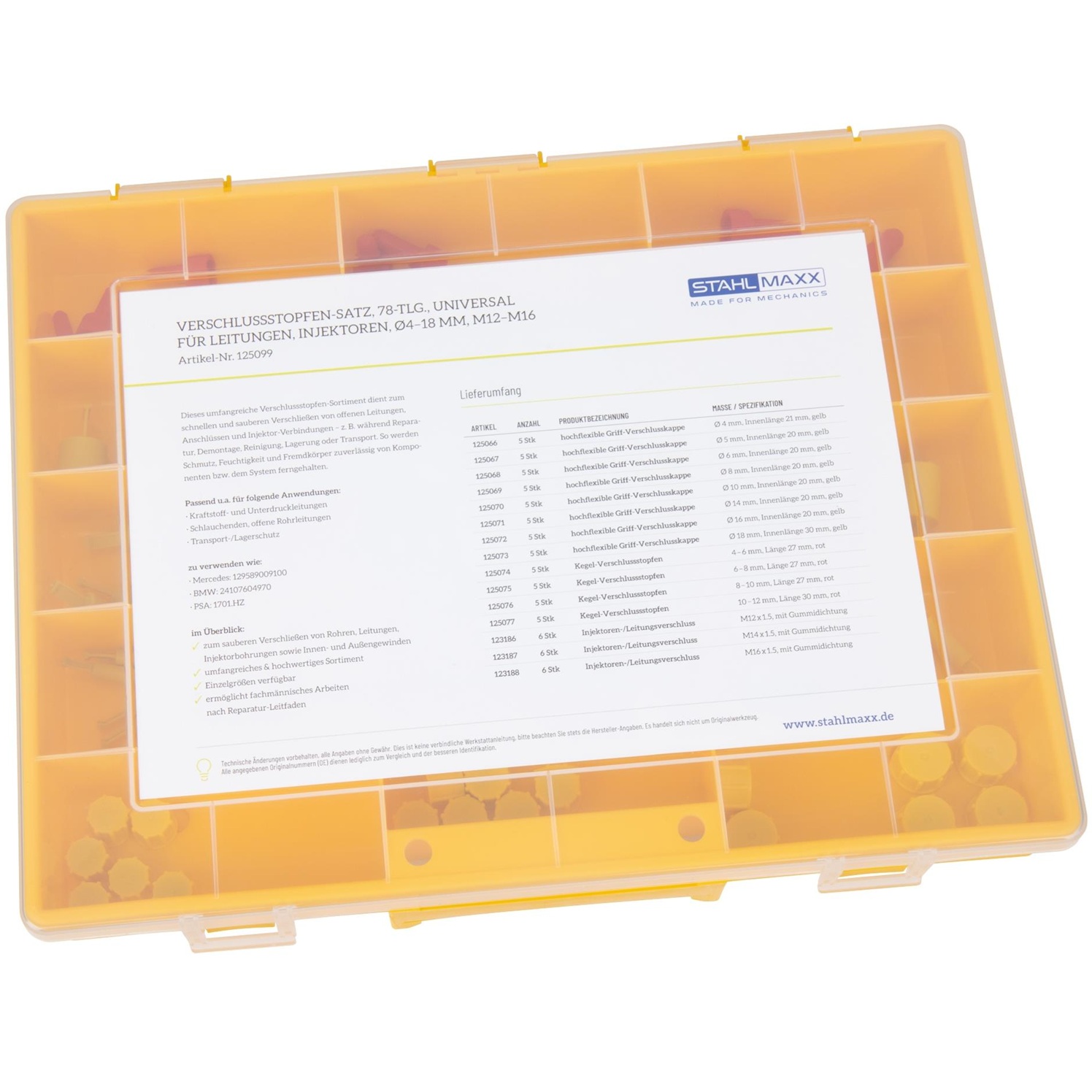

  • 1 x Item no. 125065 Assortment box, L 37 x D 29.5 x H 6 cm, plastic, with 15 compartments, incl. insert.
• Recommended additional tools (not included):

  • Item no. 120469 Leak detector / smoke generator / smoker, for locating leaks – Professional Plus;

  • Item no. 123135 Leak detector / smoke generator / smoker, for locating leaks – Professional Gen. 2

  • Item no. 121143 Bellows for sealing larger pipes, for leak detector item no. 120468, 120469

  • Item no. 123196 Sealing plug set, 72 pieces, universal, for pipes, intake manifolds and hoses, like VAG 6122

  • Item no. 123197 Sealing set, 18 pieces, for injectors, lines and injectors M12, M14 and M16, universal.

STAHLMAXX 125099
