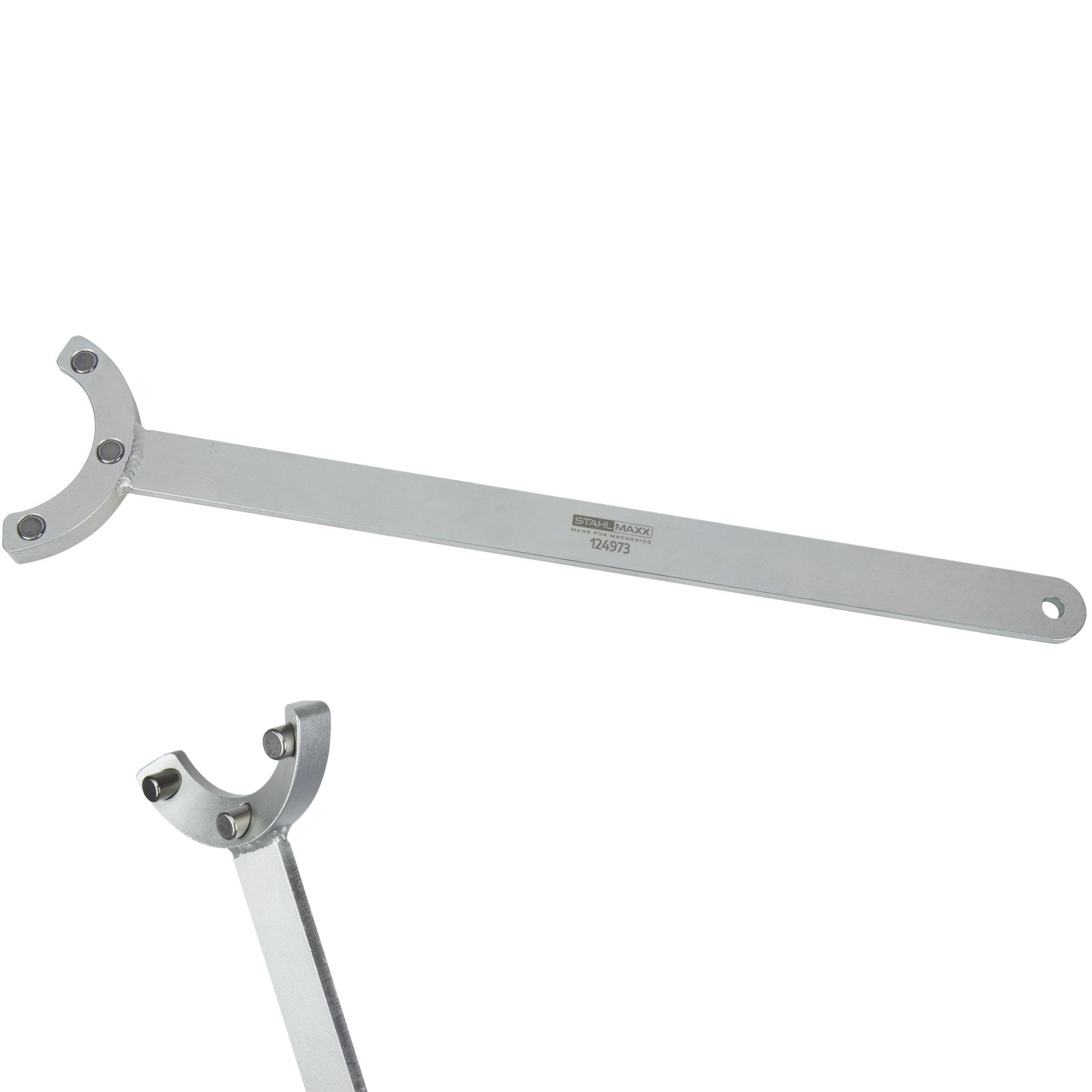

Kľúč držiaci na viskóznu spojku ventilátora, pre Mercedes Sprinter 900/906, ako W651589064000, STAHLMAXX 124973

Na stiahnutie

Návod / príručka

Kompletné špecifikácie

• This special counterhold tool is required to remove the fan viscous coupling on Mercedes-Benz OM651 engines in Sprinter, Viano, and Vito models without start-stop.

• It is used, among other things, for timing chain repairs, replacing the serpentine belt, removing the radiator/air conditioning condenser, the water pump, and for general repairs on the front of the engine.
• NOTE: Applies to vehicles without code MJ7 + MJ8 (ECO start-stop function). For vehicles with start-stop function, please use the counterhold tool like Mercedes W651589054000.
• CAUTION: Different viscous fan variants exist depending on the Euro emissions standard and Eco function. If you are unsure, we will be happy to assist you.
• Suitable for the following engine codes:

  • OM651 in type 900 without start-stop function;

  • OM651 in type 906 without start-stop function.
• Suitable for:
  • MERCEDES-BENZ SPRINTER 3.5-t Bus (906) (06.2006 - 05.2016) 310 CDI (906.731, 906.733, 906.735) (95 HP, 70 kW)
    MERCEDES-BENZ SPRINTER 3.5-t Bus (906) (06.2006 - 05.2016) 311 CDI (906.731, 906.733, 906.735) (114 HP, 84 kW)
    MERCEDES-BENZ SPRINTER 3.5-t Bus (906) (06.2006 - 05.2016) 313 CDI (906.731, 906.733, 906.735) (129 HP, 95 kW)
    MERCEDES-BENZ SPRINTER 3.5-t Bus (906) (06.2006 - 05.2016) 313 CDI 4x4 (906.731, 906.733, 906.735) (129 HP, 95 kW)
    MERCEDES-BENZ SPRINTER 3.5-t Bus (906) (06.2006 - 05.2016) 314 CDI (906.731, 906.733, 906.735) (143 HP, 105 kW)
    MERCEDES-BENZ SPRINTER 3.5-t Bus (906) (06.2006 - 05.2016) 314 CDI 4x4 (906.731, 906.733, 906.735) (143 HP, 105 kW)
    MERCEDES-BENZ SPRINTER 3.5-t Bus (906) (06.2006 - 05.2016) 315 CDI (906.733) (150 HP, 110 kW)
    MERCEDES-BENZ SPRINTER 3.5-t Bus (906) (06.2006 - 05.2016) 315 CDI 4x4 (906.735) (150 HP, 110 kW)
    MERCEDES-BENZ SPRINTER 3.5-t Bus (906) (06.2006 - 05.2016) 316 CDI (906.731, 906.733, 906.735) (163 HP, 120 kW)
    MERCEDES-BENZ SPRINTER 3.5-t Bus (906) (06.2006 - 05.2016) 316 CDI 4x4 (906.731, 906.733, 906.735) (163 HP, 120 kW)
    MERCEDES-BENZ SPRINTER 3.5-t Box (906) (06.2006 - 12.2017) 310 CDI (906.631, 906.633, 906.635, 906.637) (95 hp, 70 kW)
    MERCEDES-BENZ SPRINTER 3.5-t Box (906) (06.2006 - 12.2017) 311 CDI (906.631, 906.633, 906.635, 906.637) (114 hp, 84 kW)
    MERCEDES-BENZ SPRINTER 3.5-t Box (906) (06.2006 - 12.2017) 313 CDI (906.631, 906.633, 906.635, 906.637) (129 hp, 95 kW)
    MERCEDES-BENZ SPRINTER 3.5-t Box (906) (06.2006 - 12.2017) 313 CDI 4x4 (906.631, 906.633, 906.635, 906.637) (129 HP, 95 kW)
    MERCEDES-BENZ SPRINTER 3.5-t Box (906) (06.2006 - 12.2017) 314 CDI (906.631, 906.633, 906.635, 906.637) (143 hp, 105 kW)
    MERCEDES-BENZ SPRINTER 3.5-t Box (906) (06.2006 - 12.2017) 314 CDI 4x4 (906.631, 906.633, 906.635, 906.637) (143 HP, 105 kW)
    MERCEDES-BENZ SPRINTER 3.5-t Box (906) (06.2006 - 12.2017) 315 CDI (906.633) (150 hp, 110 kW)
    MERCEDES-BENZ SPRINTER 3.5-t Box (906) (06.2006 - 12.2017) 316 CDI (906.631, 906.633, 906.635, 906.637) (163 hp, 120 kW)
    MERCEDES-BENZ SPRINTER 3.5-t Box (906) (06.2006 - 12.2017) 316 CDI 4x4 (906.631, 906.633, 906.635, 906.637) (163 HP, 120 kW)
    MERCEDES-BENZ SPRINTER 3.5-t flatbed/chassis (906) (06.2006 - 12.2016) 310 CDI (906.131, 906.133, 906.135, 906.231, 906.233,... (95 hp, 70 kW)
    MERCEDES-BENZ SPRINTER 3.5-t flatbed/chassis (906) (06.2006 - 12.2016) 311 CDI (906.131, 906.133, 906.135, 906.231, 906.233,... (114 hp, 84 kW)
    MERCEDES-BENZ SPRINTER 3.5-t flatbed/chassis (906) (06.2006 - 12.2016) 311 CDI (906.133) (114 hp, 84 kW)
    MERCEDES-BENZ SPRINTER 3.5-t flatbed/chassis (906) (06.2006 - 12.2016) 313 CDI (906.131, 906.133, 906.135, 906.231, 906.233,... (129 hp, 95 kW)
    MERCEDES-BENZ SPRINTER 3.5-t flatbed/chassis (906) (06.2006 - 12.2016) 313 CDI 4x4 (906.131, 906.133, 906.135, 906.231, 906.233... (129 hp, 95 kW)
    MERCEDES-BENZ SPRINTER 3.5-t flatbed/chassis (906) (06.2006 - 12.2016) 314 CDI (906.131, 906.133, 906.135, 906.231, 906.233,... (143 hp, 105 kW)
    MERCEDES-BENZ SPRINTER 3.5-t flatbed/chassis (906) (06.2006 - 12.2016) 314 CDI 4x4 (906.131, 906.133, 906.135, 906.231, 906.233... (143 hp, 105 kW)
    MERCEDES-BENZ SPRINTER 3.5-t flatbed/chassis (906) (06.2006 - 12.2016) 316 CDI (906.131, 906.133, 906.135, 906.231, 906.233,... (163 hp, 120 kW)
    MERCEDES-BENZ SPRINTER 3.5-t flatbed/chassis (906) (06.2006 - 12.2016) 316 CDI 4x4 (906.131, 906.133, 906.135, 906.231, 906.233... (163 hp, 120 kW)
    MERCEDES-BENZ SPRINTER 3-t Bus (906) (06.2006 - 05.2016) 210 CDI (906.711, 906.713) (95 HP, 70 kW)
    MERCEDES-BENZ SPRINTER 3-t Bus (906) (06.2006 - 05.2016) 211 CDI (906.711, 906.713) (114 HP, 84 kW)
    MERCEDES-BENZ SPRINTER 3-t Bus (906) (06.2006 - 05.2016) 213 CDI (906.711, 906.713) (129 HP, 95 kW)
    MERCEDES-BENZ SPRINTER 3-t Bus (906) (06.2006 - 05.2016) 214 CDI (906.711, 906.713) (143 HP, 105 kW)
    MERCEDES-BENZ SPRINTER 3-t Bus (906) (06.2006 - 05.2016) 216 CDI (906.711, 906.713) (163 HP, 120 kW)
    MERCEDES-BENZ SPRINTER 3-t Box (906) (06.2006 - 12.2009) 210 CDI (906.611, 906.613) (95 hp, 70 kW)
    MERCEDES-BENZ SPRINTER 3-t Box (906) (06.2006 - 12.2009) 211 CDI (906.611, 906.613) (114 hp, 84 kW)
    MERCEDES-BENZ SPRINTER 3-t Box (906) (06.2006 - 12.2009) 213 CDI (906.611, 906.613) (129 hp, 95 kW)
    MERCEDES-BENZ SPRINTER 3-t Box (906) (06.2006 - 12.2009) 214 CDI (906.611, 906.613) (143 hp, 105 kW)
    MERCEDES-BENZ SPRINTER 3-t Box (906) (06.2006 - 12.2009) 216 CDI (906.611, 906.613) (163 hp, 120 kW)
    MERCEDES-BENZ SPRINTER 3-t flatbed/chassis (906) (06.2006 - 05.2016) 210 CDI (906.111, 906.113, 906.211, 906.213) (95 hp, 70 kW)
    MERCEDES-BENZ SPRINTER 3-t flatbed/chassis (906) (06.2006 - 05.2016) 211 CDI (906.111, 906.113, 906.211, 906.213) (114 hp, 84 kW)
    MERCEDES-BENZ SPRINTER 3-t flatbed/chassis (906) (06.2006 - 05.2016) 213 CDI (906.111, 906.113, 906.211, 906.213) (129 hp, 95 kW)
    MERCEDES-BENZ SPRINTER 3-t flatbed/chassis (906) (06.2006 - 05.2016) 214 CDI (906.111, 906.113, 906.211, 906.213) (143 hp, 105 kW)
    MERCEDES-BENZ SPRINTER 3-t flatbed/chassis (906) (06.2006 - 05.2016) 216 CDI (906.111, 906.113, 906.211, 906.213) (163 hp, 120 kW)
    MERCEDES-BENZ SPRINTER 4.6-t Box (906) (06.2006 - 12.2018) 413 CDI (906.653, 906.655, 906.657) (129 hp, 95 kW)
    MERCEDES-BENZ SPRINTER 4.6-t Box (906) (06.2006 - 12.2018) 414 CDI (143 hp, 105 kW)
    MERCEDES-BENZ SPRINTER 4.6-t Box (906) (06.2006 - 12.2018) 414 CDI 4x4 (143 HP, 105 kW)
    MERCEDES-BENZ SPRINTER 4.6-t Box (906) (06.2006 - 12.2018) 415 CDI (150 hp, 110 kW)
    MERCEDES-BENZ SPRINTER 4.6-t Box (906) (06.2006 - 12.2018) 416 CDI (906.653, 906.655, 906.657) (163 hp, 120 kW)
    MERCEDES-BENZ SPRINTER 4.6-t Box (906) (06.2006 - 12.2018) 416 CDI 4x4 (163 HP, 120 kW)
    MERCEDES-BENZ SPRINTER 4.6-t flatbed/chassis (906) (06.2006 - 12.2018) 411 CDI (906.153, 906.155, 906.253, 906.255) (114 hp, 84 kW)
    MERCEDES-BENZ SPRINTER 4.6-t flatbed/chassis (906) (06.2006 - 12.2018) 413 CDI (129 hp, 95 kW)
    MERCEDES-BENZ SPRINTER 4.6-t flatbed/chassis (906) (06.2006 - 12.2018) 416 CDI (906.153, 906.155, 906.253, 906.255) (163 hp, 120 kW)
    MERCEDES-BENZ SPRINTER 5-t Bus (906) (06.2006 - ) 513 CDI (906.755, 906.757) (129 HP, 95 kW)
    MERCEDES-BENZ SPRINTER 5-t Bus (906) (06.2006 - ) 515 CDI (906.755, 906.757) (150 HP, 110 kW)
    MERCEDES-BENZ SPRINTER 5-t Bus (906) (06.2006 - ) 516 CDI (906.755, 906.757) (163 HP, 120 kW)
    MERCEDES-BENZ SPRINTER 5-t Box (906) (06.2006 - 05.2016) 510 CDI (906.653, 906.655, 906.657) (95 hp, 70 kW)
    MERCEDES-BENZ SPRINTER 5-t Box (906) (06.2006 - 05.2016) 511 CDI (906.653, 906.655, 906.657) (114 hp, 84 kW)
    MERCEDES-BENZ SPRINTER 5-t Box (906) (06.2006 - 05.2016) 513 CDI (906.653, 906.655, 906.657) (129 hp, 95 kW)
    MERCEDES-BENZ SPRINTER 5-t Box (906) (06.2006 - 05.2016) 513 CDI 4x4 (906.653, 906.655, 906.657) (129 HP, 95 kW)
    MERCEDES-BENZ SPRINTER 5-t Box (906) (06.2006 - 05.2016) 514 CDI (906.653, 906.655, 906.657) (143 hp, 105 kW)
    MERCEDES-BENZ SPRINTER 5-t Box (906) (06.2006 - 05.2016) 514 CDI 4x4 (906.653, 906.655, 906.657) (143 HP, 105 kW)
    MERCEDES-BENZ SPRINTER 5-t Box (906) (06.2006 - 05.2016) 515 CDI (906.655, 906.653, 906.957, 906.657) (150 hp, 110 kW)
    MERCEDES-BENZ SPRINTER 5-t Box (906) (06.2006 - 05.2016) 516 CDI (906.653, 906.655, 906.657) (163 hp, 120 kW)
    MERCEDES-BENZ SPRINTER 5-t Box (906) (06.2006 - 05.2016) 516 CDI 4x4 (906.653, 906.655, 906.657) (163 HP, 120 kW)
    MERCEDES-BENZ SPRINTER 5-t flatbed/chassis (906) (06.2006 - 05.2016) 510 CDI (906.153, 906.155, 906.253, 906.255) (95 hp, 70 kW)
    MERCEDES-BENZ SPRINTER 5-t flatbed/chassis (906) (06.2006 - 05.2016) 511 CDI (906.153, 906.155, 906.253, 906.255) (114 hp, 84 kW)
    MERCEDES-BENZ SPRINTER 5-t flatbed/chassis (906) (06.2006 - 05.2016) 513 CDI (906.155, 906.253, 906.255) (129 hp, 95 kW)
    MERCEDES-BENZ SPRINTER 5-t flatbed/chassis (906) (06.2006 - 05.2016) 513 CDI 4x4 (906.155, 906.253, 906.255) (129 hp, 95 kW)
    MERCEDES-BENZ SPRINTER 5-t flatbed/chassis (906) (06.2006 - 05.2016) 514 CDI (906.153, 906.155, 906.253, 906.255) (143 hp, 105 kW)
    MERCEDES-BENZ SPRINTER 5-t flatbed/chassis (906) (06.2006 - 05.2016) 514 CDI 4x4 (906.153, 906.155, 906.253, 906.255) (143 hp, 105 kW)
    MERCEDES-BENZ SPRINTER 5-t flatbed/chassis (906) (06.2006 - 05.2016) 516 CDI (906.153, 906.155, 906.253, 906.255) (163 hp, 120 kW)
    MERCEDES-BENZ SPRINTER 5-t flatbed/chassis (906) (06.2006 - 05.2016) 516 CDI 4x4 (906.153, 906.155, 906.255) (163 hp, 120 kW)
• To be used like: W651589064000 / 651 589 06 40 00.
• Overview:

  • ✔ Quick and safe removal of the fan viscous coupling

  • ✔ Suitable for engine 651 without start-stop function

  • ✔ Modeled after the original

  • ✔ Repair according to manufacturer specifications.

STAHLMAXX 124973
